Built to dominate the trail. Engineered by Clayton Off Road. Delivered by OGWG Off-Road.
When it comes to long arm systems, not all kits are created equal. This Pro Series 3-Link Front Long Arm System from Clayton Off Road is designed for serious Jeep builders who demand strength, articulation, and long-term reliability—on and off the trail.
At OGWG Off-Road, we back products that perform in real-world conditions. This system delivers next-level suspension geometry, unmatched flex, and a ride quality that outperforms factory setups.

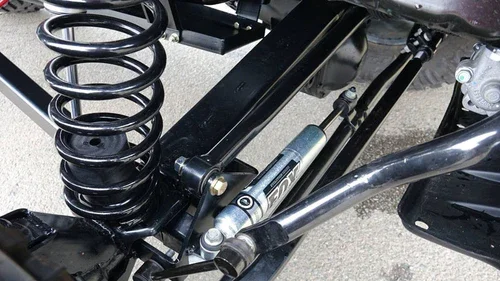

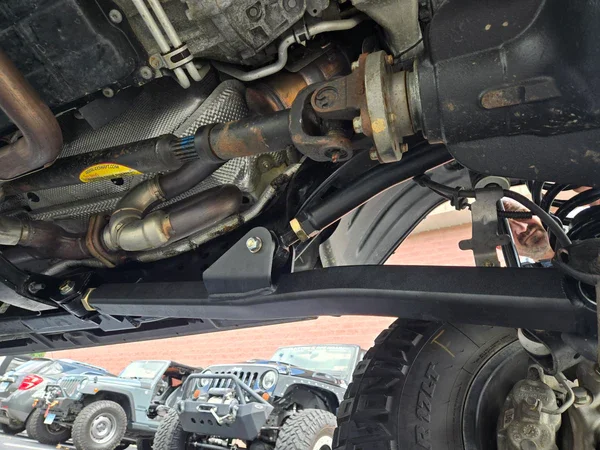

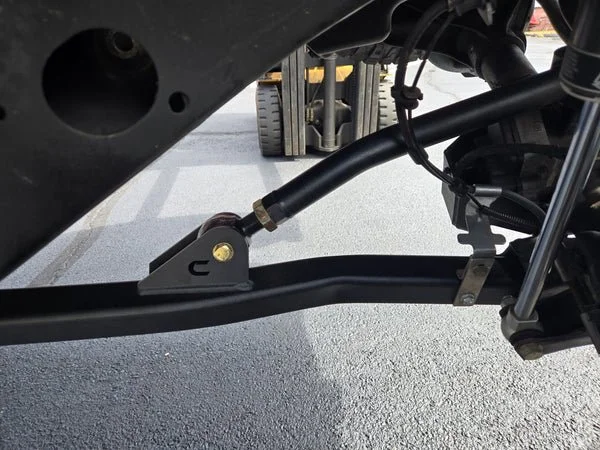

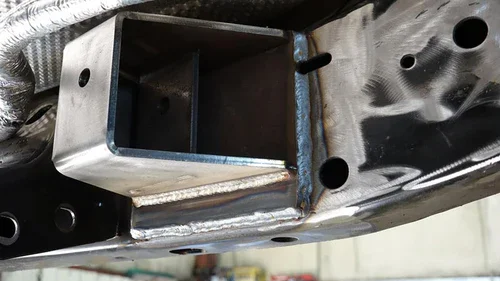

The arms have been upgraded to our Pro series arms which feature a forged johnny joint at one end and a dual durometer, maintenance free, self-centering GIIRO Joint at the other for maximum flex and adjustability. Like our standard JK long arm system, we still use a bolt in3 piece cross memberand then added a new1/4 weld on frame bracket. Depending on your axle type we offer an optional front truss, or simply attach your 3 link axle upper mount to your existing truss. This 3 link front upper arm does come with right hand, and left hand johnny joints forsimple caster angle adjustment.
The rear of the Pro Series kit uses4 truly long arms, with aforged johnny joint at one end, and adual durometer, self-centering, maintenance free GIIRO joint bushingat the other end.

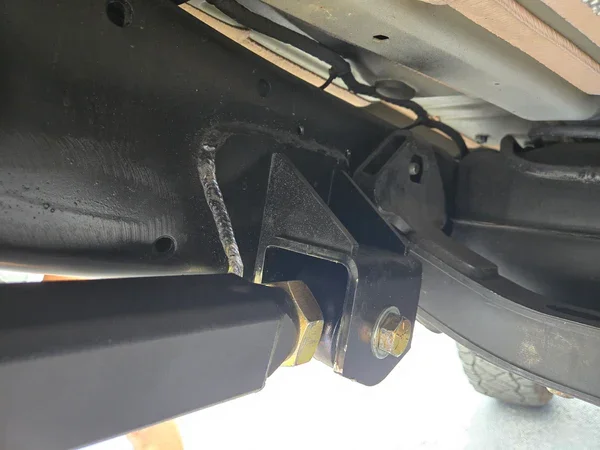

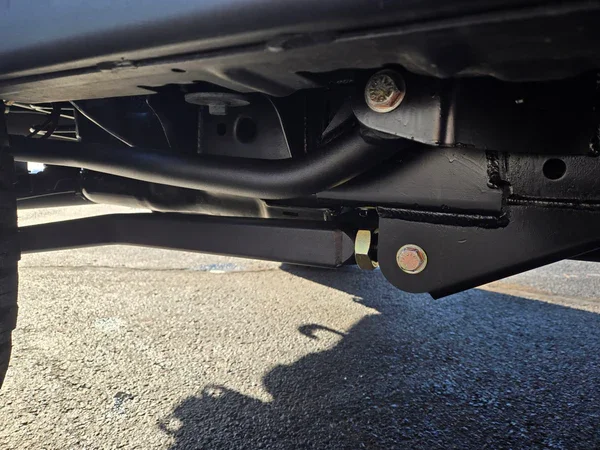

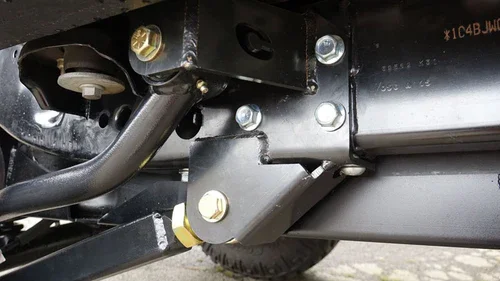

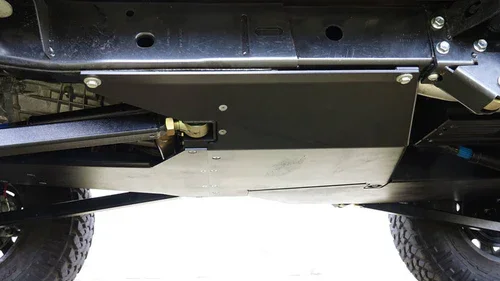

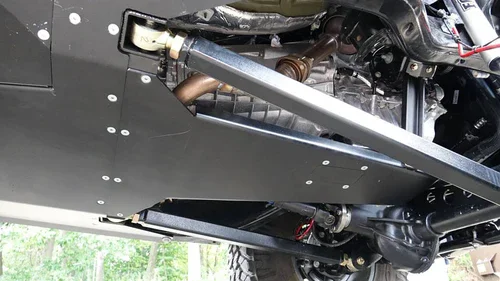

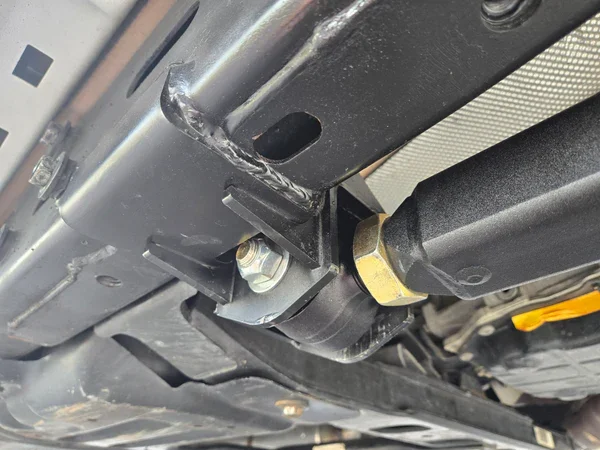

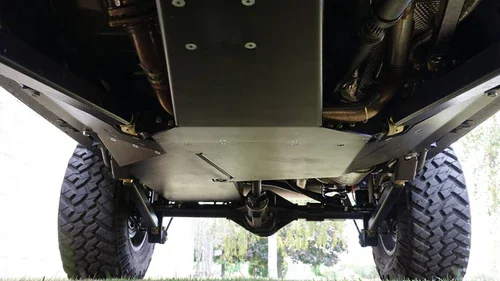

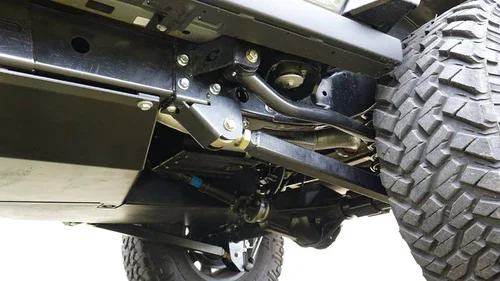

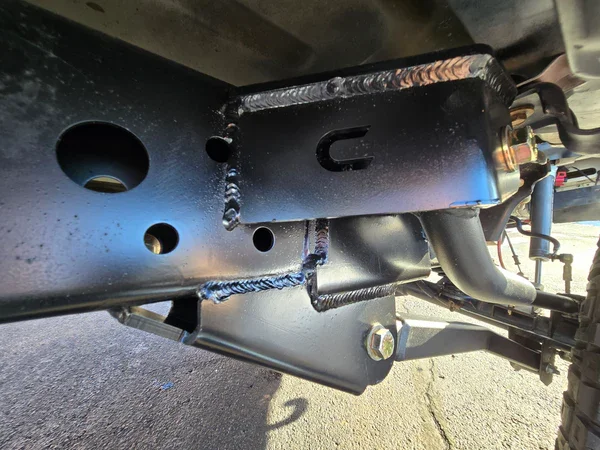

Some key features with the new JK front long arm kit are our bolt-in 3 piece cross member. The cross member bolts into the OEM location and has pockets for the forged 2.5 inch johnny joints which allows formaximum ground clearance. This cross member can be simply bolted in, and is also setup so it can be welded in for the more abusive drivers. Like all other Clayton Off Road cross members the center section is removable, making any transmission changes simple and can be done without touching any suspension arms. Therear ¼ bolt on bracketwas designed to allow for 4 truly long arms. This bracket can be installed without removing the gas tank, and uses 8 bolts to securely clamp to the frame rail. Both the 3 piece cross member and rear frame brackets were designed using the latest 3D Solid Works program, CNC laser cut, and CNC bent for maximum strength and accuracy. This kit truly gives you all the benefits any customer is looking for both on and offroad. The longer arms correct all the geometry issuescreating a better than factory ride. And the 3 piece cross member, 1/4" rear frame brackets, Pro Series arms which carry ourlifetime warrantyagainst bending or breaking, your JK will be ready for any trail you desire.
NOTE:
Welding is required to install this lift kit.
Custom exhaust modification is necessary to install this kit.
On a 2 DR Model a rear adjustable trackbar is required.
Front CV Style Driveshaft is required on all models.
Rear CV Style Driveshaft is required on a 2 door, and recommended on a 4 door.

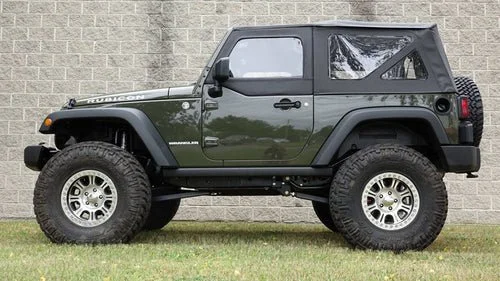

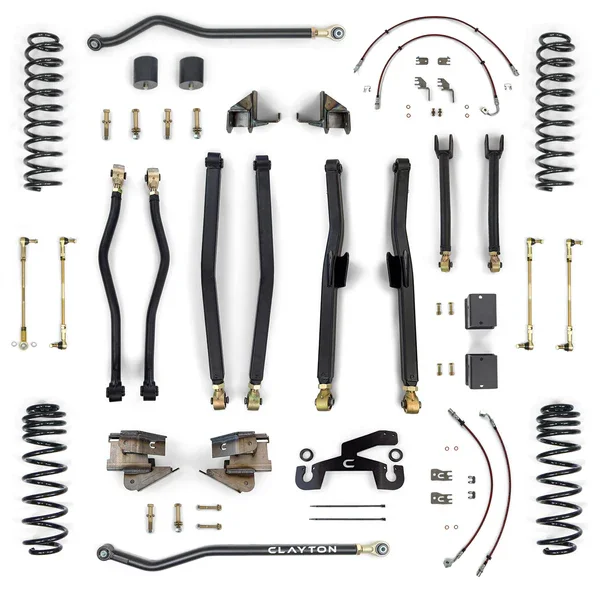

2007-2018 Jeep Wrangler JK 3.5" Long Arm Lift Kit (2DR/4DR, Rubicon/Non-Rubicon, Auto/Manual)
